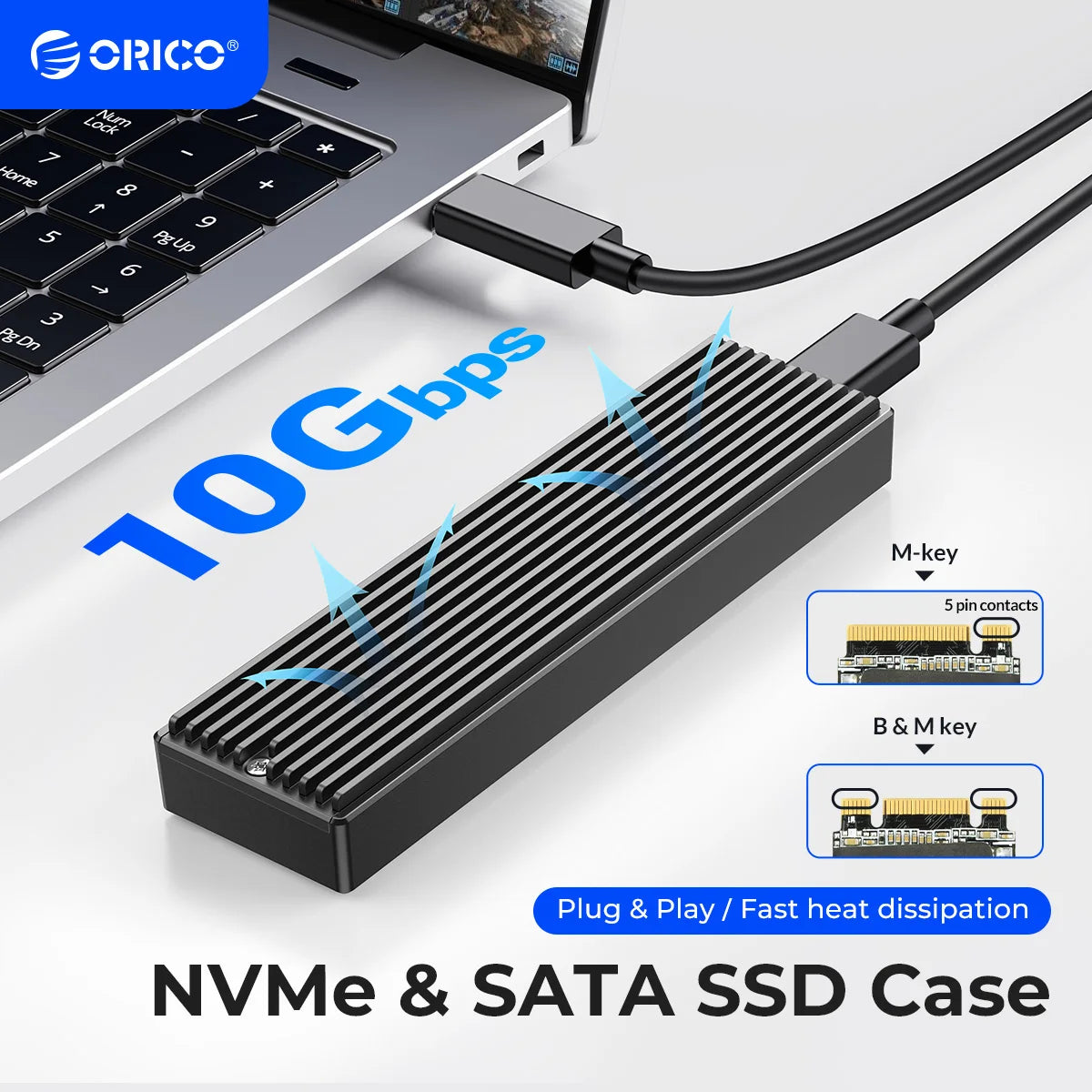

ORICO M2 SSD Case NVMe USB Type C Gen2 10Gbps PCIe SSD Case M2 SATA NGFF 5Gbps M.2 NVME Enclosure Disk Box M.2 SSD Case
ORICO M2 SSD Case NVMe USB Type C Gen2 10Gbps PCIe SSD Case M2 SATA NGFF 5Gbps M.2 NVME Enclosure Disk Box M.2 SSD Case
Couldn't load pickup availability
SPECIFICATIONS
20Gbps Size: 106.5mm(L)*39mm(W)*12mm(H)
Brand Name: Orico
Cable Length: 15cm
Case Material: Aluminum,Aluminum + ABS
Choice: yes
Color: Black
Compatible Siz: 2230/2242/2260/2280mm
External Interface: USB
Feature 1: m2 ssd case
Feature 2: nvme case
Feature 3: nvme enclosure
Feature 4: m2 nvme case
Hign-concerned Chemical: None
Item: M.2 SSD Enclosure
Model Number: M2PV/M2PF/M2PAC
NGFF Model: Support NGFF SATA M2 SSD
NVMe Model: Support NVMe PCIE M2 SSD
Origin: Mainland China
Package: Yes
Size: 1.8",108mm(L)*29.5mm(W)*13.5mm(H)
Supporting Hard Drive Capacity: 2TB / 4TB
System Compatibility: Windows / Mac OS/ Linux
Transmission Speed: 10Gbps(NVME)/5Gbps(NGFF)/20Gbps(NVME 20Gbps)
semi_Choice: yes
Note : Please confirm the interface and compatible protocols before purchase.
Please note: the color of the cable will be sent randomly and will not be the same as the picture, the function is the same

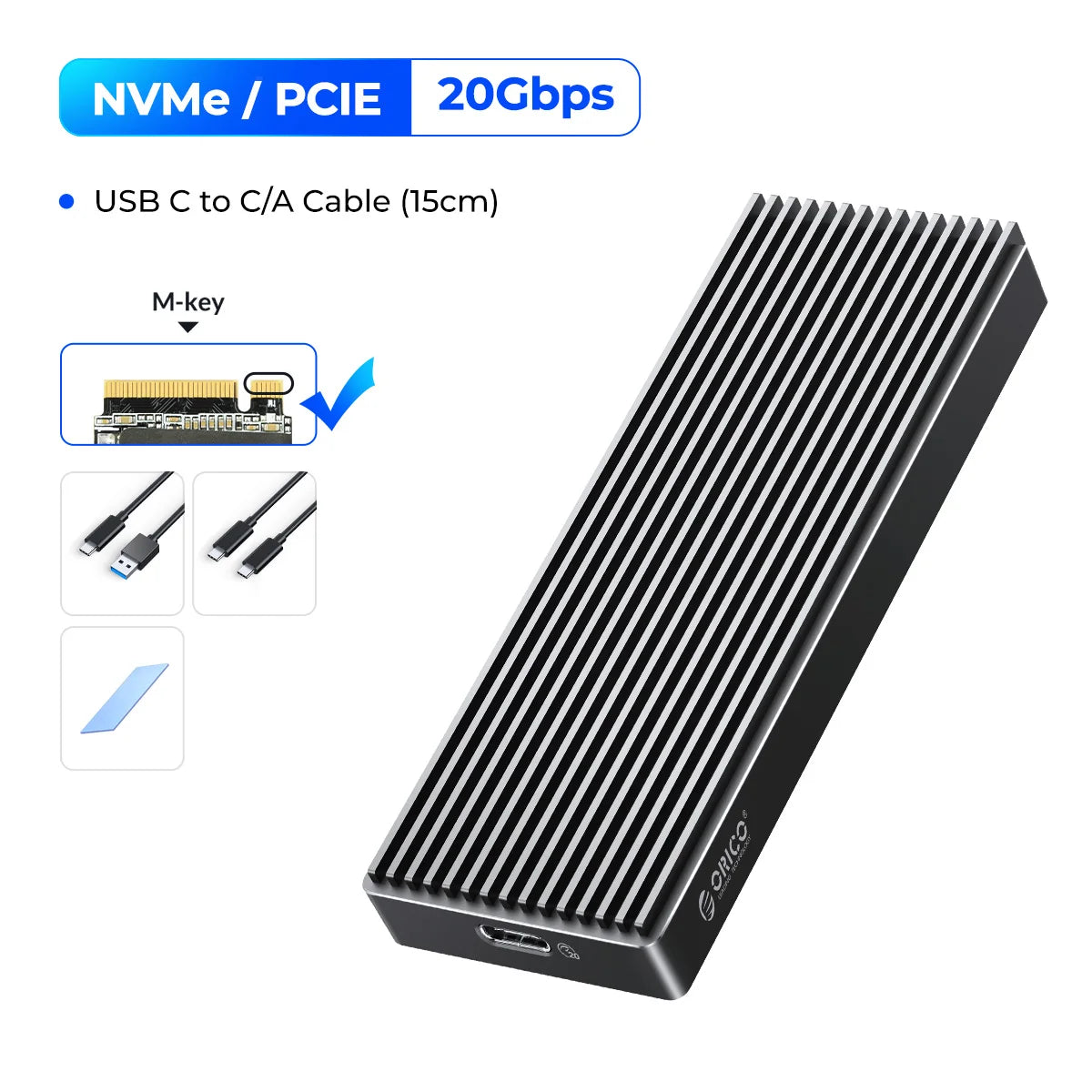

To achieve 2000MB/S for 20Gbps hard disk enclosure, the device needs to support USB3.2 GEN2*2 transmission protocol. MAC reach 1000mb/s only, advice to choose 10Gbps.

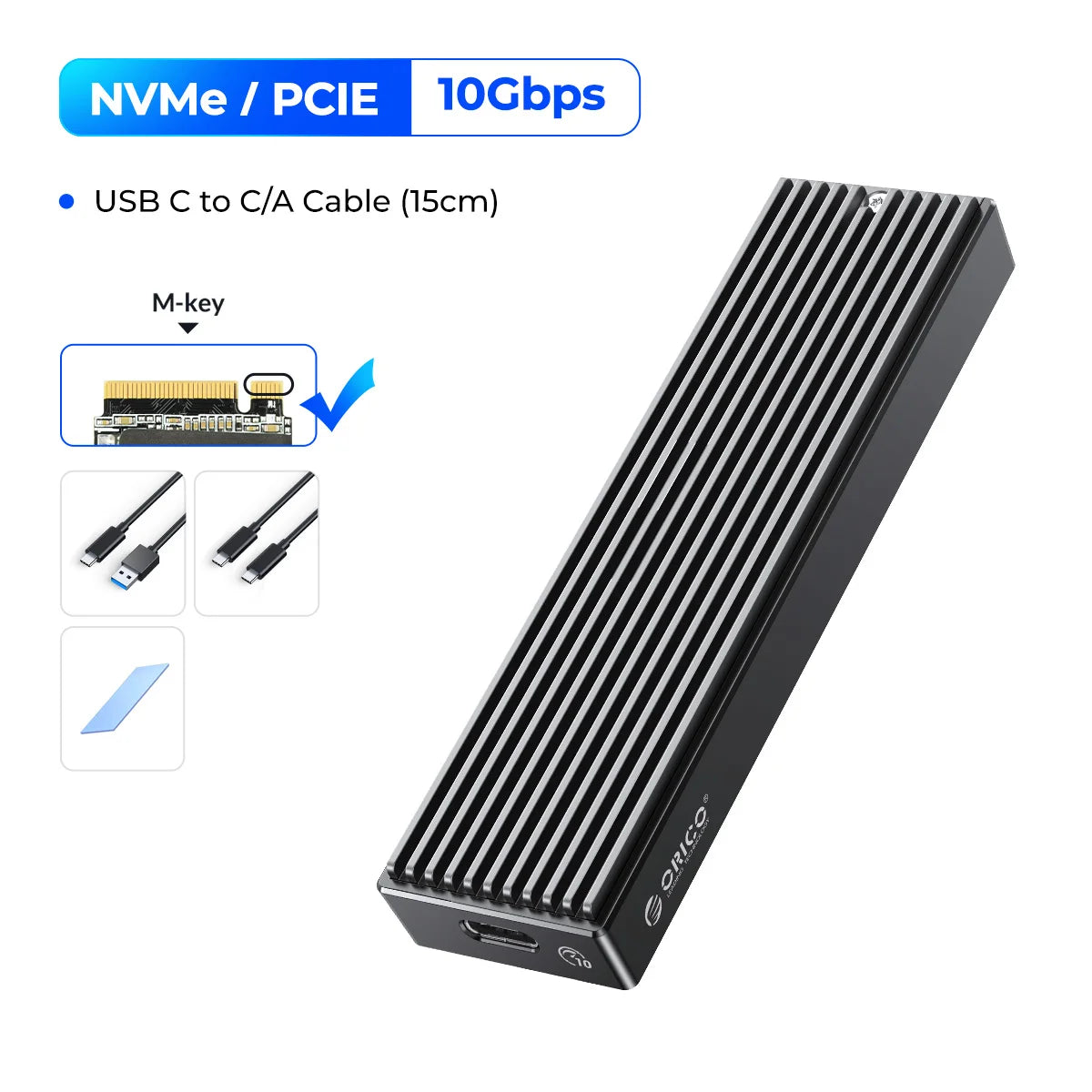

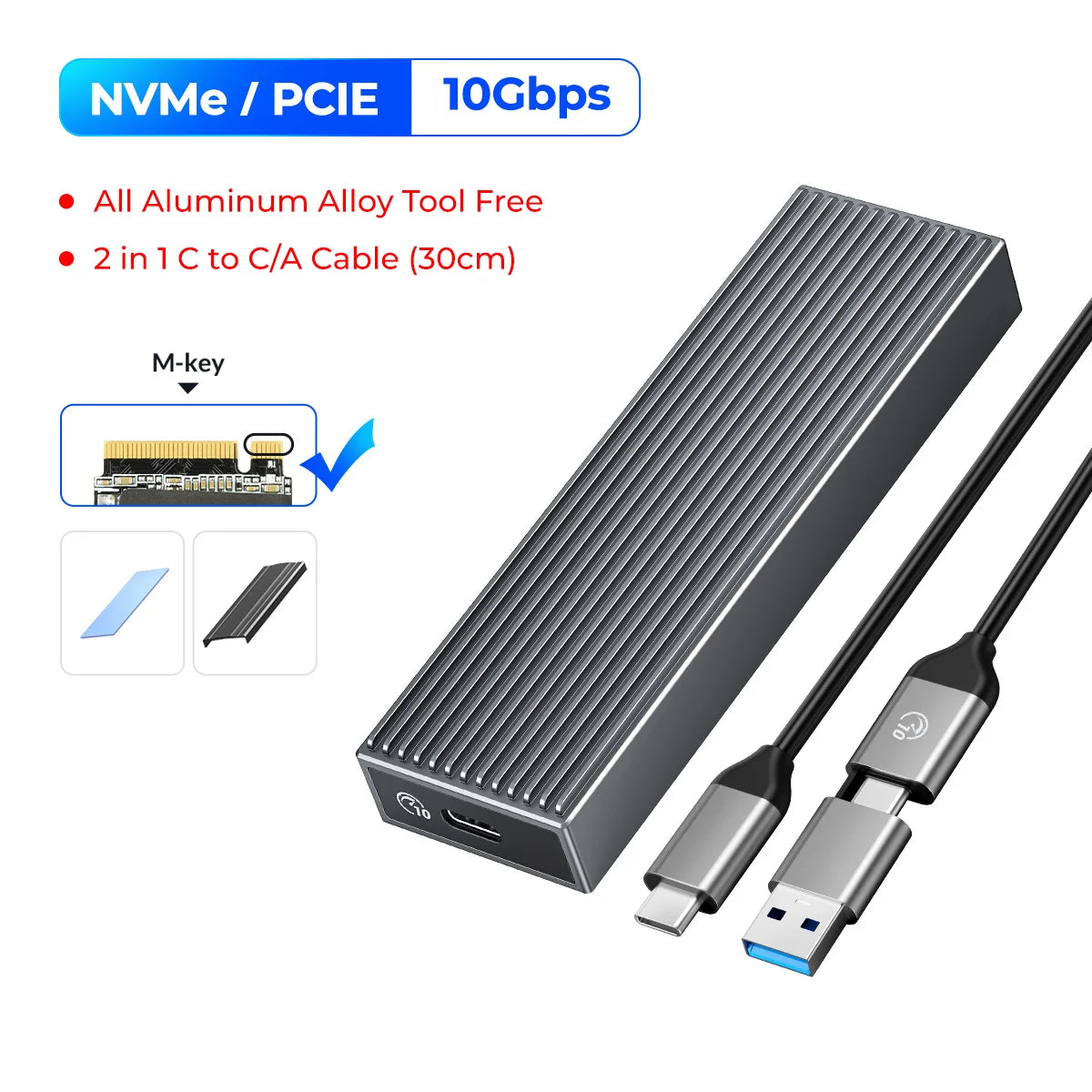

Only support NVME PCI-E protocol M key SSD.

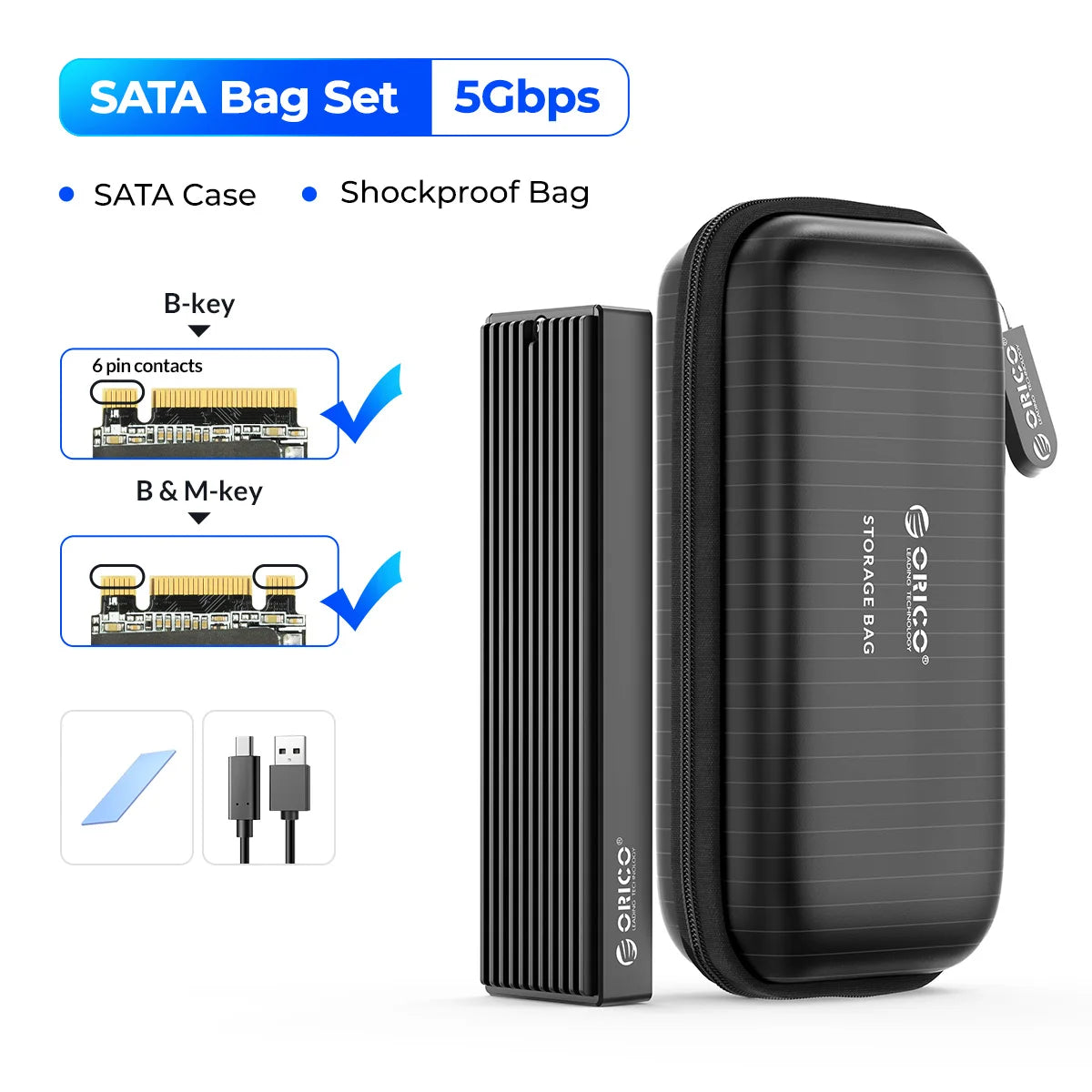

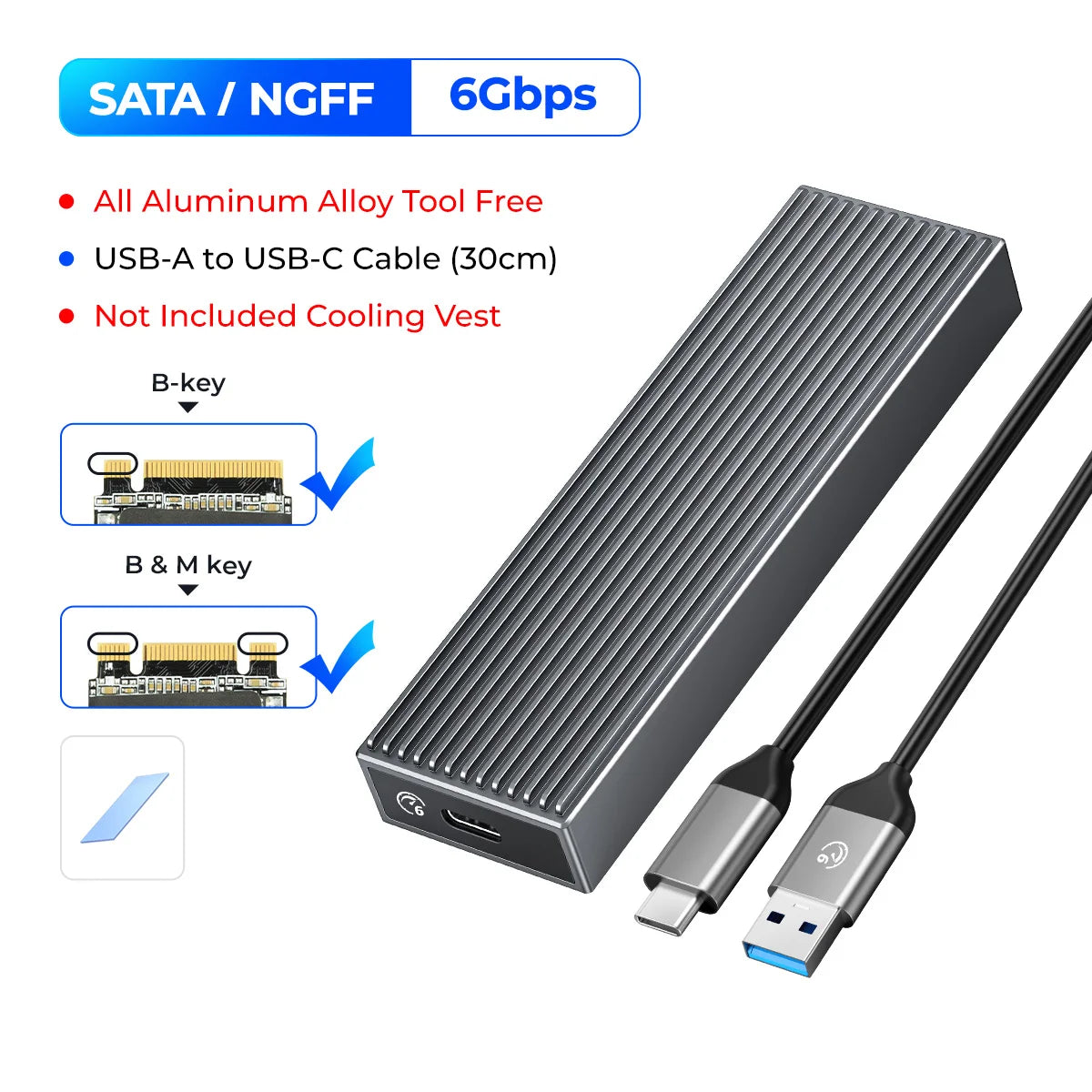

SATA 5Gbps Model
Only support NGFF SATA protocol B key / M&B KeySSD.

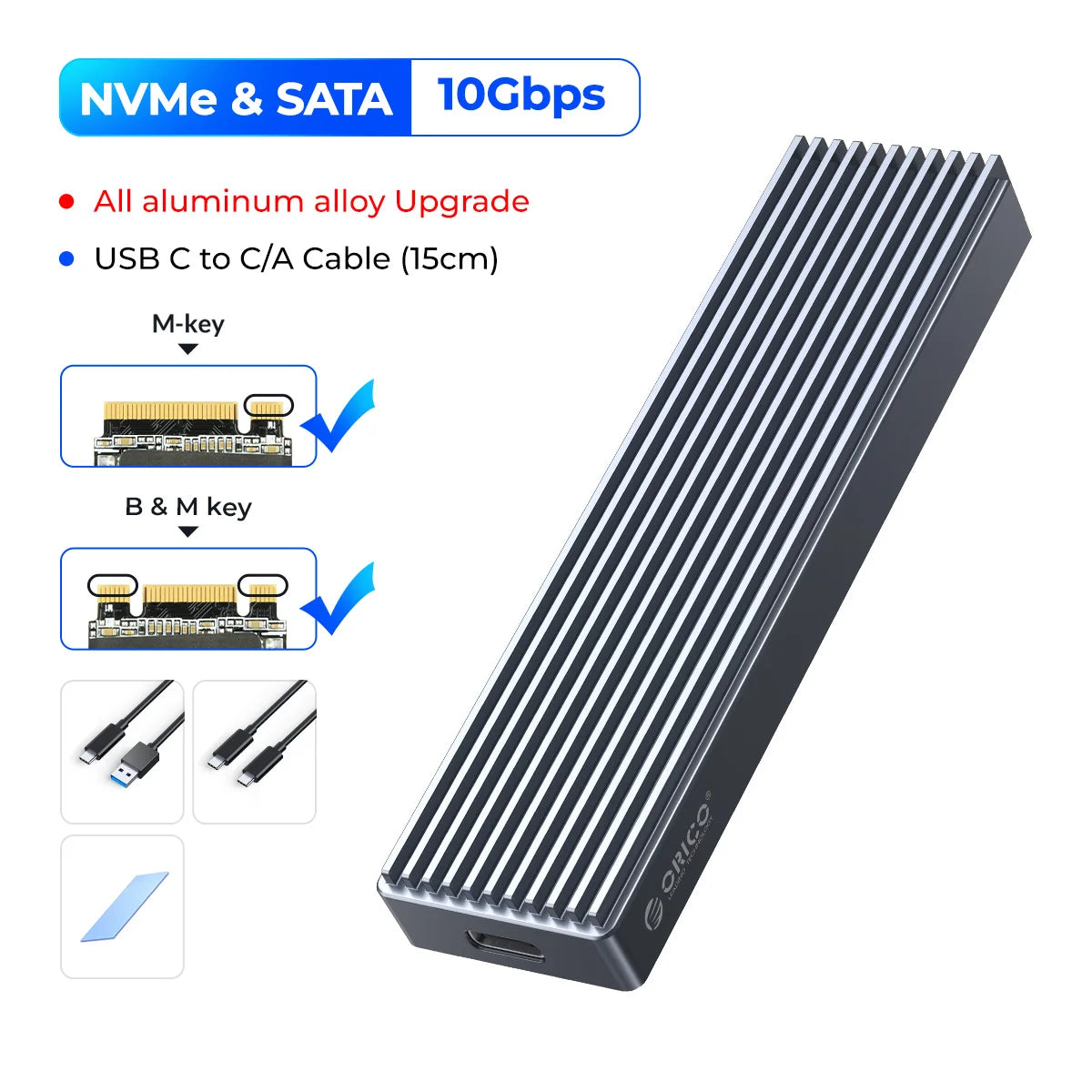

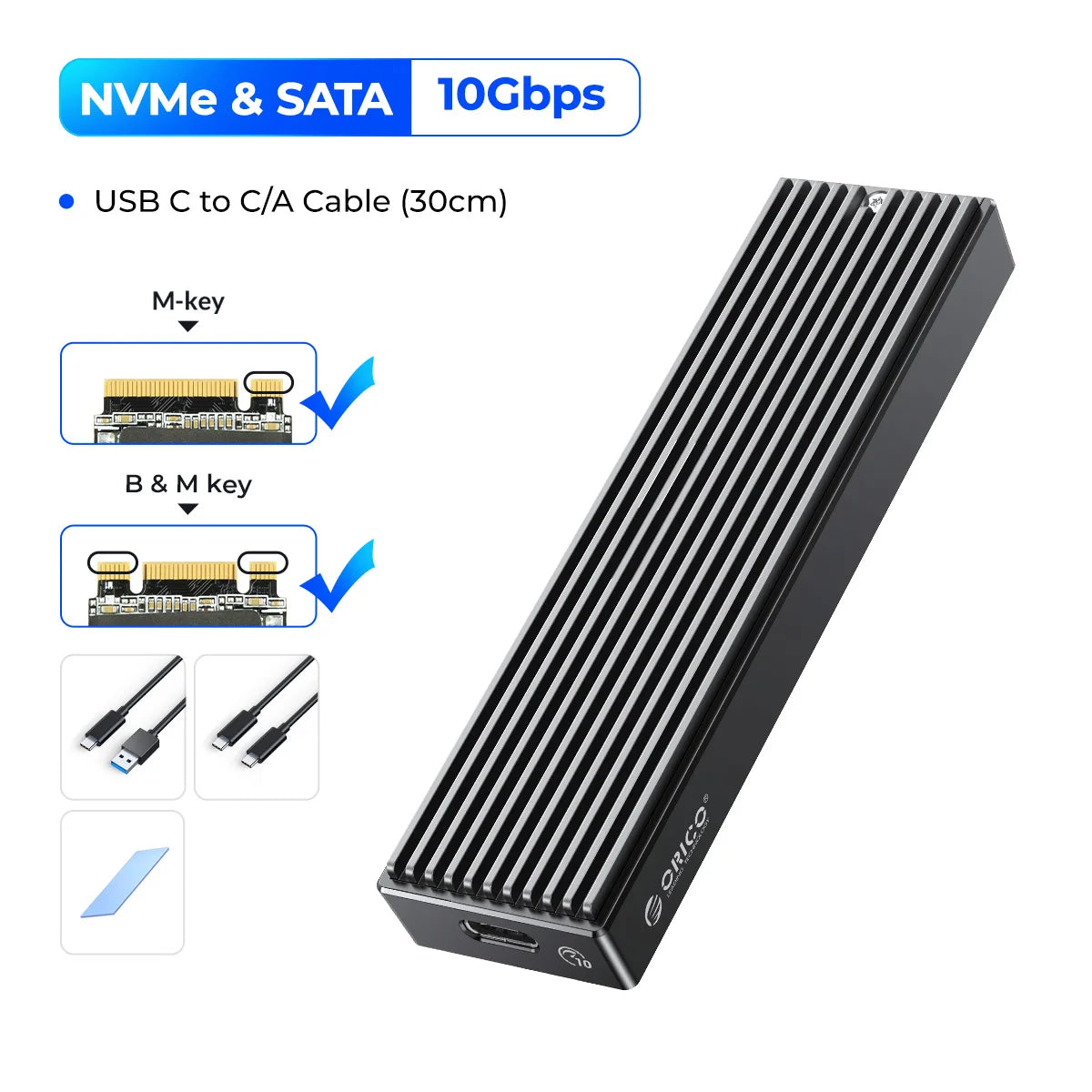

Dual Protocol SATA & NVMe Model
SupportM Key(NVMe Protocol) /M&B Key(both NVME and SATA Protocol) SSD, not compatible with B Key SSD.
ORICO has been focusing on electronic products for 13 years, with a mature industry chain and innovative ability to keep pace with the times. We pay great attention to product quality and continue to innovate, and 1-year after-sales service. The M.2 SSD Adapter offers the possibility to use the M.2 NVMe SSD as an external drive only through the USB port of a PC or laptop.

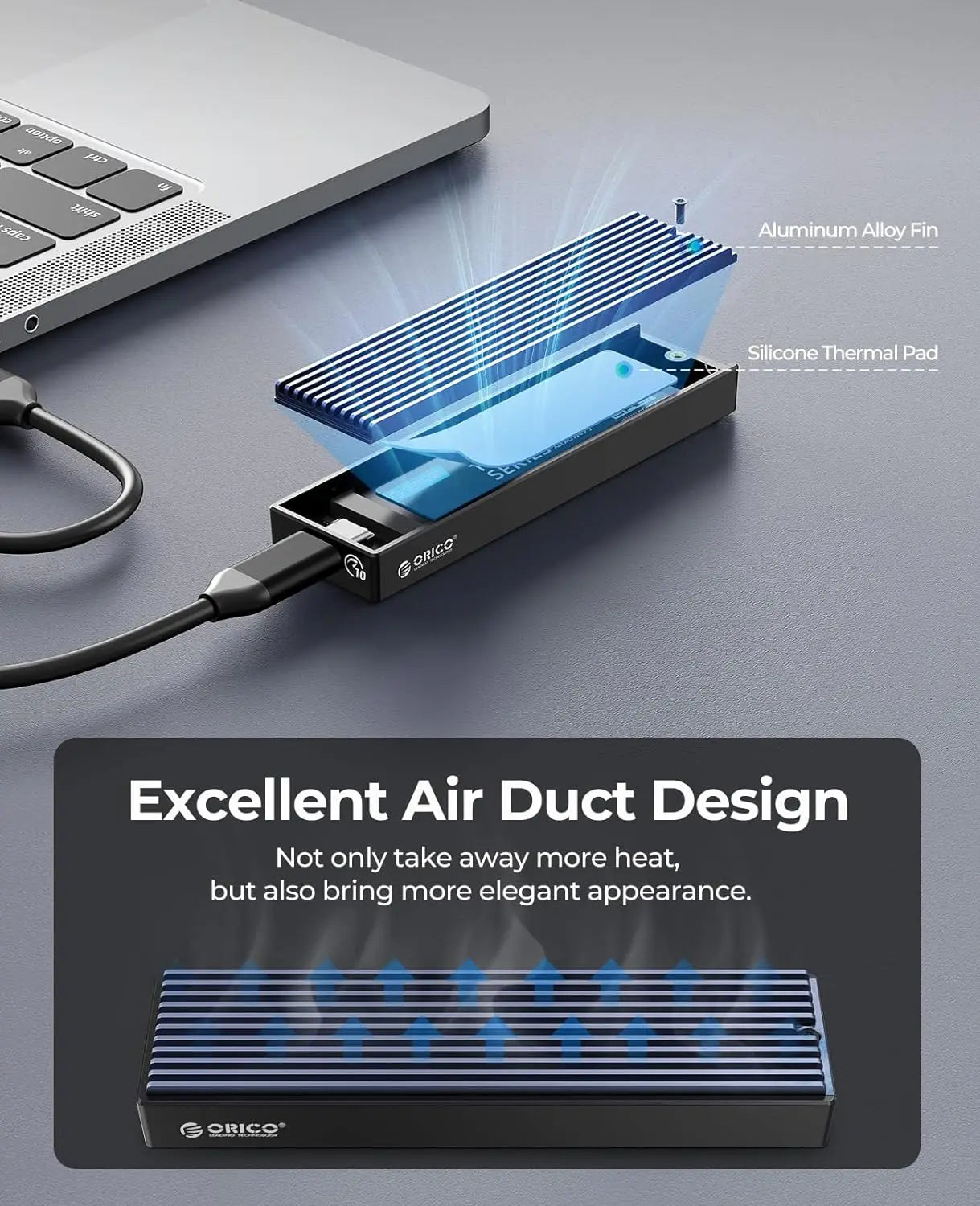

Upgrade Cooling Efficiency-Cooling Vest
The M.2 enclosure has been professionally designed, and a new metal heat dissipation vest with excellent heat dissipation effect is added, which wraps the SSD in multiple directions, and accurately guides the heat to the enclosure shell to dissipate heat. The heat dissipation efficiency is 20% higher than that of traditional metal sheets.(SATA 5Gbps Model is not included cooling vest and thermal pad).
USB3.2 Gen2 10Gbps Speed
When using NVMe SSD, the transmission rate is 10Gbps and the read and write speed is 1000MB/s. When using M.2 SATA SSD, the transmission rate is 5Gbps, and the reading and writing speed is 450MB/s.

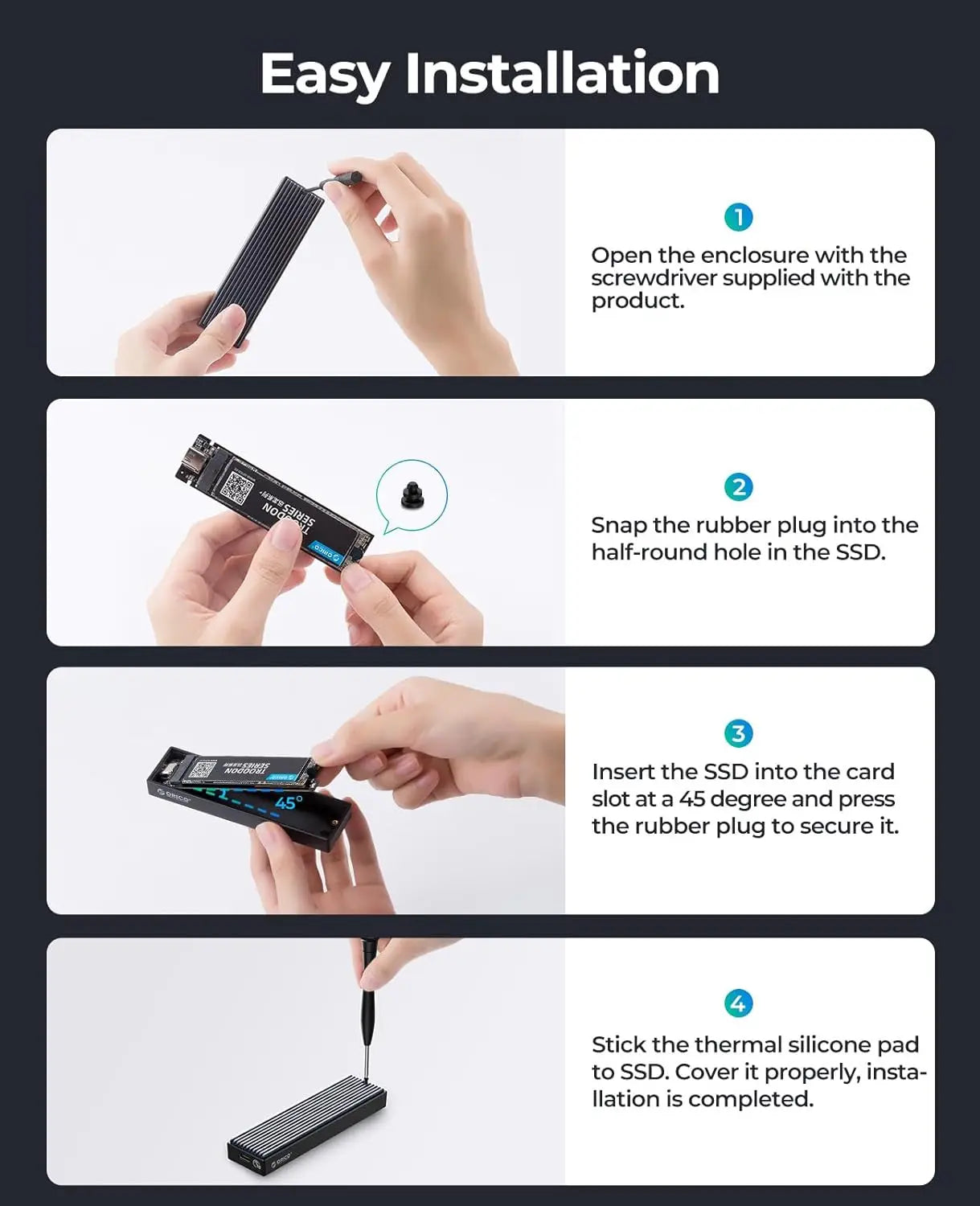

Easy Installation
Open the enclosure with the screwdriver supplied with the product.Snap the rubber plug into the half-round hole in the SSD.Insert the SSD into the card slot at a 45 degree and press the rubber plug to secure it.Stick the thermal silicone pad to SSD. Cover it properly, installation is completed.
Supports up to 4TB
High-quality Main Control Chip
ORICO nvme ssd enclosure Using high-performance controller IC, supports UASP acceleration protocol and Trim, SMART functions, which can effectively improve SSD speed, protect data operation, and extend SSD life.
Compatible With Different SSDs
Compatibility SSD size:2230/2242/2260/2280.

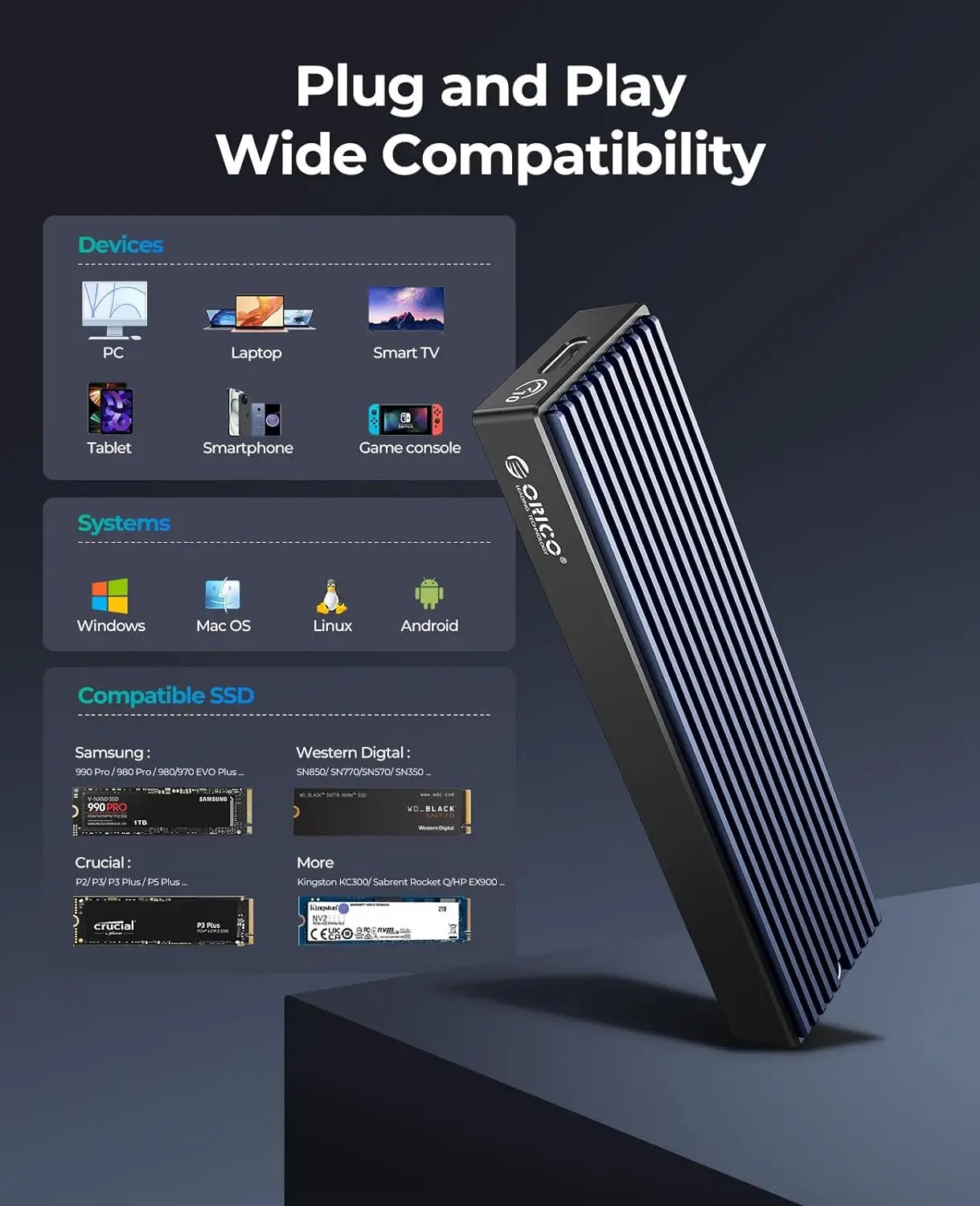

Compatible with multiple operating systems
Windows, Mac OS, Linux, Android.
LED Indicator & 10Min Auto Sleep
With the auto indicator, you can get to know that the ssd enclosure is in working mode.
Suitable for Gaming,Back up Data,Your External Database
High work efficiently,Game loads quickly,Video Editing,HD video clips and loads smoothly
,Store large photos and videos.
Compact and Portable

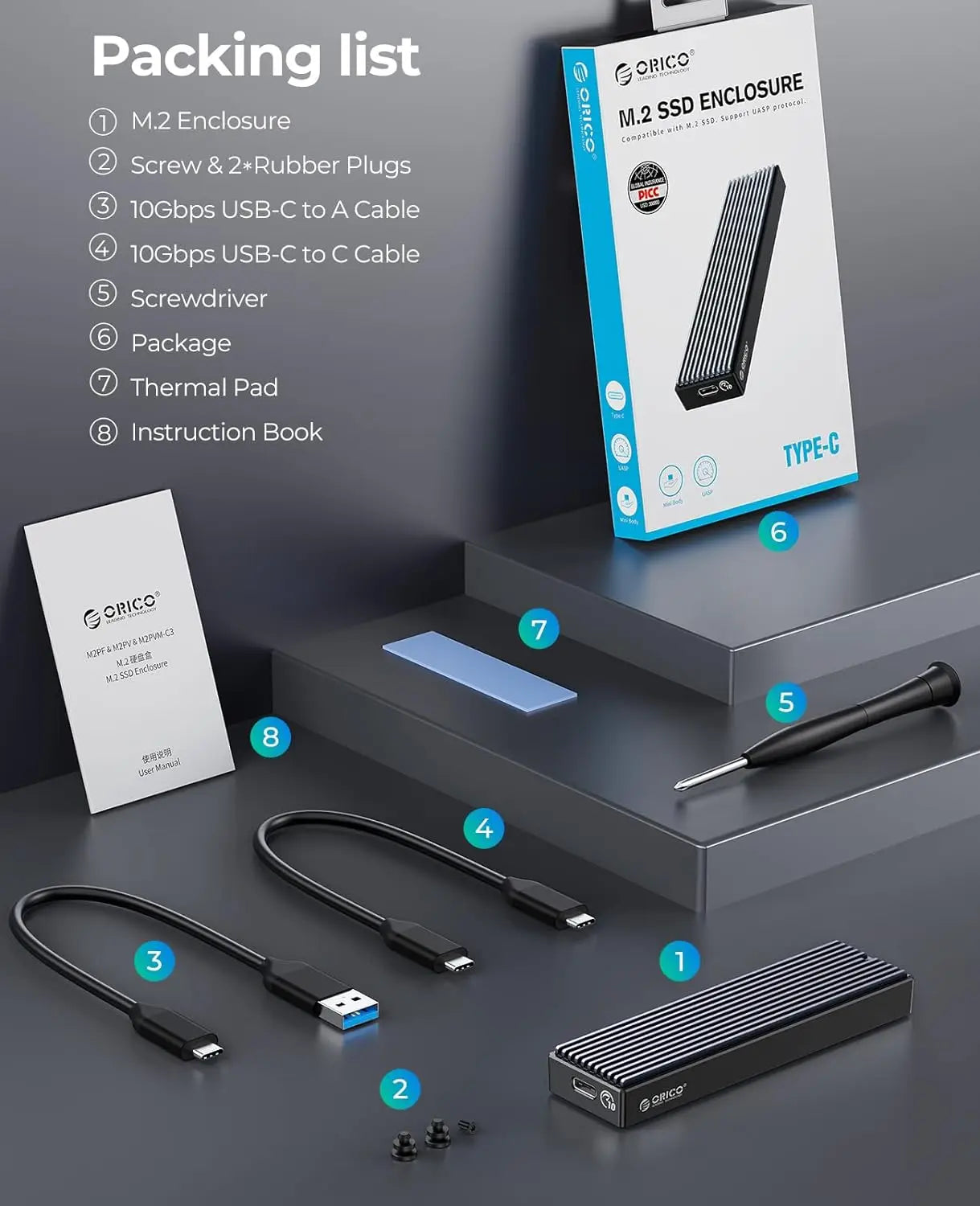

Package Included:
1. M.2 SSD Enclosure
2. Screw &2*Rubber Plugs
3.USB-C to A Cable
4.USB-C to C Cable
5.Thermal Pad
Buyer Display
Q:Why can't it write in Mac OS? But it can read and write normally under Windows.
A:Please confirm the format of your M.2 SSD. And Mac OS has to install NTFS reading software to read M.2 SSDs in NTFS format.
Q:After installing SSD, the computer is not read by the enclosure?
A:Since SSD is brand new, you should formatting it into Exfat or NTFS format before use.
Q:Is there a sleep setting? Are there any interruptions in data transmission during sleep?
A:The M.2 enclosure will automatically hibernate after 10 minutes of computer inactivity. Once your computer has read them, it will not automatically sleep.
Q:Why is the speed not as fast as advertised?
A:The operating speed of the product is determined by the notebook, M.2 SSD, and USB port type. For the fastest read and write speeds, an NVMeSSD should be used, and the external enclosure for the M.2 SSD should be connected to a USB 3.1 GEN2 10G port.
Q:Why does it generate heat?
A:SSDs generate heat as they read and write at high speeds. The aluminum case of this product effectively transfers heat throughout the case, quickly releasing the high temperatures generated by NVMe SSDs when they are operating.
(PS: Click image to view the relevant product and purchase details.)
|
|
Hot Sale AliExpress TOP 1 |
All Aluminum |
Transparent Cool |
USB4 NVME |
NVME with Docking station |
|
|
|
|
|
|
|
Transmission Speed |
6 / 10Gbps |
6 / 10Gbps |
6 / 10Gbps |
40Gbps |
10Gbps / 10 in 1 Dock |
Capacity |
4TB |
4TB |
4TB |
4TB |
4TB |
Compatibility |
M Key / (M+B) Key / B Key |
M Key / (M+B) Key / B Key |
M Key / (M+B) Key / B Key |
M Key / (M+B) Key |
M Key / (M+B) Key |
Support |
SSD: 2280/2260/2242/2230 System : Multi OS, Windows, Mac OS, Linux ,Android Support UASP & Trim |
||||
